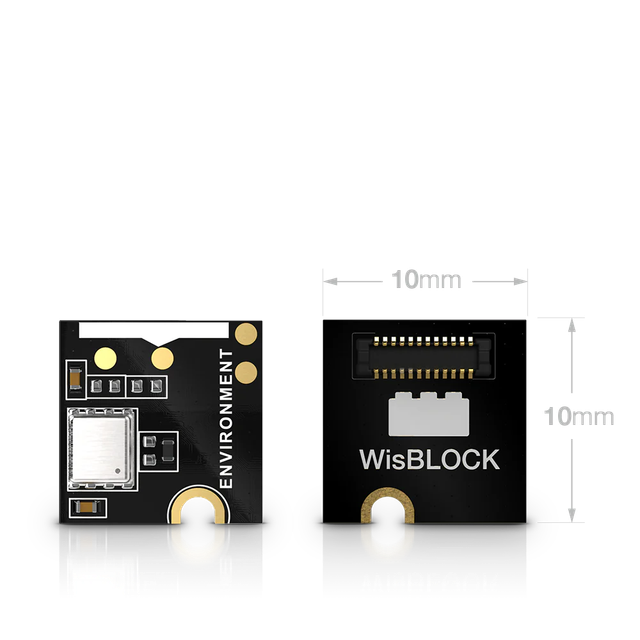

RAKwireless - Environment Sensor BOSCH BME680 - RAK1906 - Wisblock Sensor

RAK1906 is not only measuring air temperature, humidity, and barometric pressure. It has as well an integrated gas sensor to acquire information about air quality.

RAK1906 combined with the RAK4631 WisBlock Core is ready to go system for air quality and condition system. It's use cases are personal air quality tracker, weather stations, or gas detection, The acquired data can be send using LoRaWan® communication, LoRa® point to point connections, and BLE.

RAK1906 is ideal for battery-powered applications because of its low power consumption. In addition, the WisBlock system allows to power down the module complete to reduce the power consumption of the system even more.

Key Features

Using the Bosch BME680 environment sensor

Low power consumption

Small form factor

Temperature range: -40°C to +85°C

Humidity range: 0% to 100%

Pressure range: 300 to1100 hPa

Gas sensor response time < 1s

Gas sensor direct output of IAQ: Index for Air Quality

Package Inclusion

1x RAK1906
